How to setup Allen-Bradley 1770-KFD DeviceNet Driver?

Problem

Need to Setup Allen-Bradley 1770-KFD communication driver to get online with DeviceNet.

Solution

  1. Connect computer’s RS-232 port to 1770-KFD hardware box

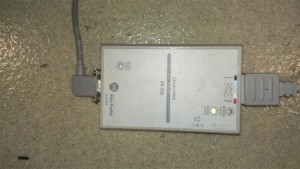

    AB 1770-KFD Hardware Box

    AB 1770-KFD Hardware Box

  2. Connect 1770-KFD hardware box to DeviceNet network through DeviceNet connector

    AB 1770-KFD Connection at SDN module side

    AB 1770-KFD Connection at SDN module side

  3. Select DeviceNet driver in RSLinx and then select 1770-KFD driver

    Select 1770-KFD Driver in RSLinx

    Select 1770-KFD Driver in RSLinx

  4. Select RS-232 comm port, data rate and DeviceNet node address and data rate. Device Manager in Windows control panel shows communication port’s data rate. You have to test different DeviceNet node address and data rate if you do not have any information on the DeviceNet configuration.

    Select Comm Port and Speed

    Select Comm Port and Speed

  5. Follow screen prompts to complete the process. If it is successful, RSLinx adds a new communication driver 1770-KFD-1
    Initialize DeviceNet Interface

    Initialize DeviceNet Interface

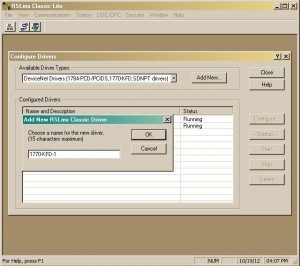

    New DeviceNet Interface

    New DeviceNet Interface

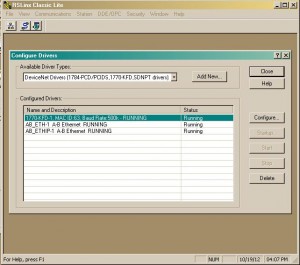

    New DeviceNet Driver in RSLinx

    New DeviceNet Driver in RSLinx
