How to view Phasor diagram with Viewpoint UR Engineer’s Oscillography?

Phasor diagram is a very useful tool to check voltage and current sequence ¬†for three phase motor. General Electric’s Viewpoint UR Engineer offers additional capability of phasor diagram with oscillography.

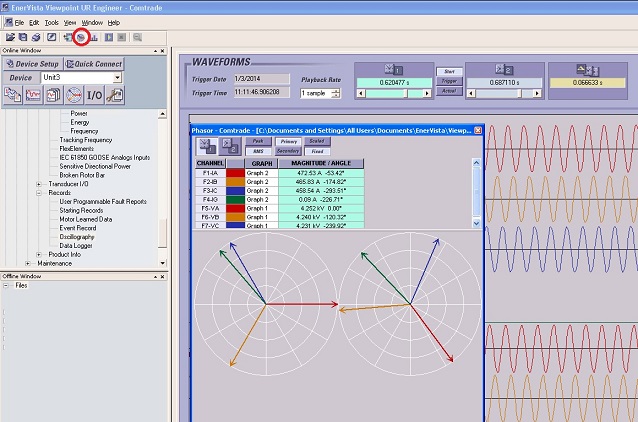

After the oscillography is ran, engineer can open the osillograhy and click on the phasor diagram button (circled in the picture below). A phasor diagram shows up.

001 - Phasor with Oscillography
