DraftSight – A free AutoCAD replacement

Background

AutoCAD software is the leading Computer Aid Design software package in the world. It is costly for businesses, almost UN-affordable for casual CAD designer . It was a happy surprise to stumble to Draft Sight, a CAD software package made by Dassault System with similar user interface and shortcuts as AutoCAD.  DraftSight can open and save file to AutoCAD’s dwg format. And it is free!

Download and User Screen

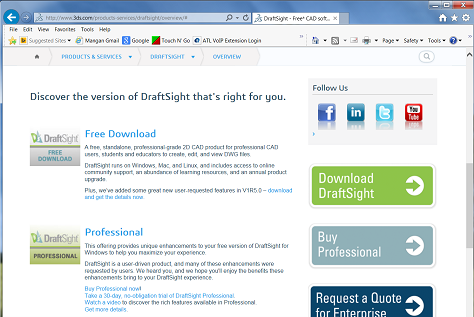

DraftSight is available for download at http://www.3ds.com/products-services/draftsight/download-draftsight/?xtmc=draftsight&xtcr=1

001 - Download from www_3ds_com

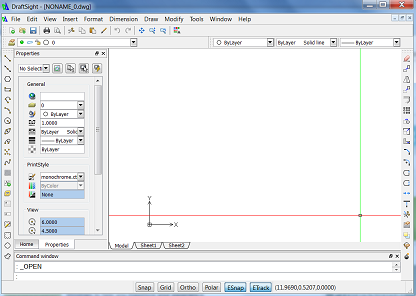

Below is DraftSight’s drawing area. It is almost the same as AutoCAD screen. If you are an AutoCAD user, you feel right at home in DraftSight.

002 - DraftSight Screen
